How to Relocate the Tailgate Backup Camera on a 2019-2022 Chevrolet Colorado

Adding aftermarket equipment to the rear of your 2019-2022 Chevrolet Colorado truck with a standard backup camera system often times results in the loss of your OE rear camera functionality because the camera mounted in the tailgate is either blocked or has been removed completely.

Whether it's a camper shell, fifth-wheel towing apparatus, or a service body that replaces the bed altogether, Rostra Accessories offers a complete line of components that allow you to keep this important safety feature.

If you have any questions about using a backup camera relocation system with your Chevrolet Colorado truck, or want to share details of the equipment that you're adding to the back of the truck for ideas on selecting a camera, please click here to email us.

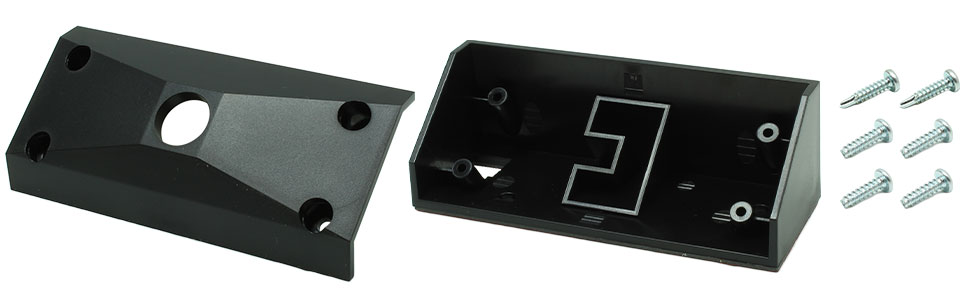

250-8660-H Tailgate Camera Relocation Housing

An image showing Rostra part number 250-8660-H - a plastic housing used for relocating the factory backup camera in a 2019-2022 Chevrolet Colorado truck. Next to the housing siz stainless steel screws are pictured which are used to mount the housing to a surface.

Click image to enlarge...

The 250-8660-H provides a way for installers to remove the OEM rear camera from within their truck's tailgate to be mounted to a flat surface on the rear of any equipment installed in the bed or which has replaced the bed. Use of the 250-8660-H housing alone requires the camera to be mounted low on the truck so as to connected to the LVDS interface harness.

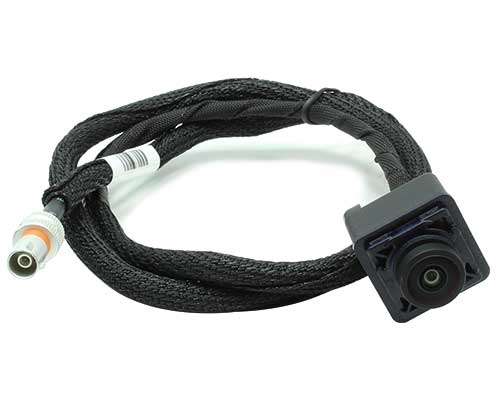

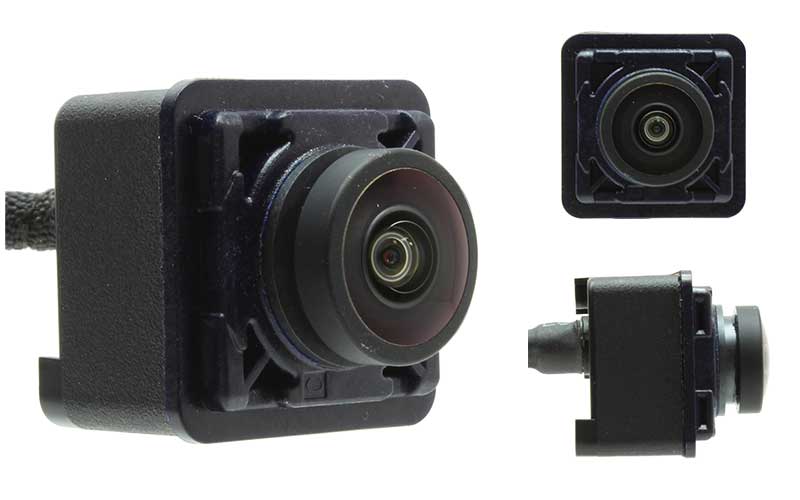

250-8168 OEM LVDS Camera

An image showing Rostra part number 250-8168 - a digital camera used as part of the around-view camera system on a Chevrolet Colorado truck.

Click image to enlarge...

The 250-8168 is an OEM rear camera for use with 250-8660-H relocation housing. The 250-8168 is perfect for installers who do not want to remove the OEM camera from within their truck's tailgate.

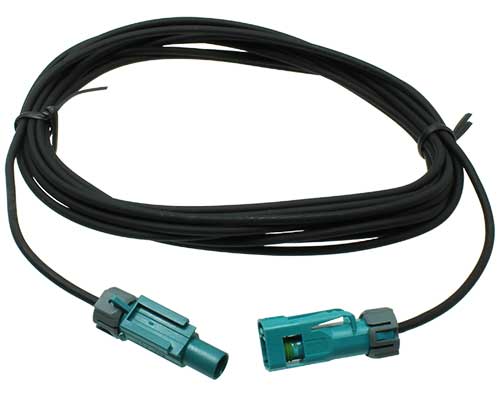

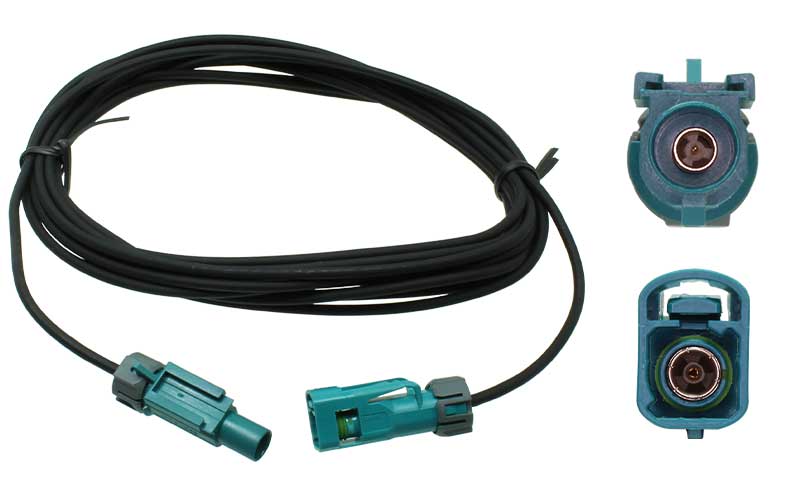

250-8669 5-Meter LVDS Extension Harness

An image showing Rostra part number 250-8669 - a di5-meter LVDS extenion harness for use when relocation the rear around-view camera on a Chevrolet Colorado truck.

Click image to enlarge...

The 250-8669 5-meter extension harness is ideal for use when an installer needs to relocate the OEM rear camera high on the back of a vehicle and the factory wiring is not long enough to reach.

Email Us

Feel free to use the form below to contact us if you have any questions or concerns about relocating your Chevrolet Colorado's backup camera from the tailgate or if you're interested in purchasing one of the kits detailed on this page.
