How to Limit the Maximum Speed of a Vehicle with a Rostra Speed-Limiter

Problem

Your company drivers have a lead foot when they're behind the wheel of your vehicles. This can not only result in citations being issued to your drivers but can potentially cause an increase in your insurance premiums, excessive wear and tear on the vehicle, elevated fuel usage and overall cost of vehicle maintenance.

Solution

Vehicle speed-limiting modules with pre-programmed maximum driving speeds are now available from Rostra Accessories. These modules are vehicle-specific and once connected to the throttle control system, they will not allow a driver to accelerate past a specific speed. As well, these modules are tamper-proof and their maximum set speed cannot be altered by the driver in any way once programmed. Such a device can be uniquely useful in the following situations:

Product Components

Rostra's vehicle speed-limiting systems typically consist of a pre-programmed control module, accelerator pedal interface harness, and OBD-II connector.

For Vehicles Equipped with Original Equipment Cruise Control Functionality

Rostra's speed-limiting systems work by blocking communication from the accelerator pedal being controlled by the driver's foot once the set speed limit has been reached. If the vehicle is equipped with an original equipment cruise control system, the steering wheel or control stalk-mounted cruise control buttons can allow a driver to surpass the set speed limit. For this reason, installers MUST also order part number 250-3766 which will disallow cruise control functionality past the set speed limit.

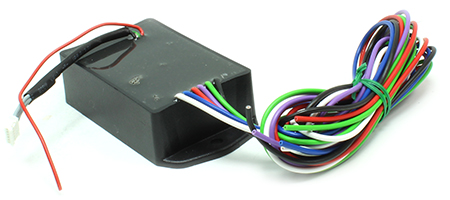

Image of Rostra 250-3766 control module with multi-color wires

When ordering a Rostra Vehicle Speed Limiter, simply identify the speed at which you want the vehicle to be limited by appending the speed limit to the end of the part numbers. For example:

How to Select Your Speed-Limiting System

When ordering a Rostra Vehicle Speed Limiter, simply identify the speed at which you want the vehicle to be limited by appending the speed limit to the end of the part numbers. For example:

Current Speed-Limiter Vehicle Applications

Part Number(s) Speed Limiter Vehicle Applicability
250-9802-65/70/75/80 '11-'16 Ford F250/F350/F450
250-9806-65/70/75/80 '12-'22 Nissan NV (All Trim Levels) (A/T or M/T)
250-9808-65/70/75/80 '12-'22 Chevrolet Express and GMC Savana
250-9809-65/70/75/80 '15-'20 Ford F150 (A/T or M/T)
250-9810-65/70/75/80 '17-'22 Ford F250/F350/F450/F550 (Not for use on Cab & Chassis model trucks)
250-9811-65/70/75/80 '11-'20 Ford E250-E350 with 6-pin Accelerator Plug (A/T or M/T)
250-9812-65/70/75/80 '14-'18 Ford Transit Connect (1.6L Engine Only)
250-9813-65/70/75/80 '15-'22 Chevrolet Colorado, ‘15-'21 GMC Canyon Equipped with A/T.
250-9817-65/70/75/80 '09-'18 Chevrolet Silverado / GMC Sierra ETC (A/T or M/T) / '19-'20 Chevrolet Tahoe 1
250-9823-65/70/75/80 '12-'21 RAM 1500/2500 (A/T) - Classic Body Style Only
250-9825-65/70/75/80 '07-'18 Dodge/Mercedes Sprinter Vans
250-9829-65/70/75/80 '13-'19 Nissan Altima / ‘13-'21 Nissan NV200 / ‘13-'19 Nissan Rogue (A/T or M/T)
'15-'22 Chevrolet City Express
250-9835-65/70/75/80 '14-'18 Ford Transit connect 2.5L Engine Only (AT or MT)
250-9836-65/70/75/80 '14-'19 Ford Transit Full-Size (A/T or M/T)
250-9837-65/70/75/80 '20-'22 Ford F-250/F-350/F-450/F-550 Cab & Chassis
250-9839-65/70/75/80 '15-'22 RAM ProMaster City (A/T or M/T)
250-9842-65/70/75/80 '14-'21 RAM ProMaster (A/T or M/T)
250-9846-65/70/75/80 '19-'21 Chevrolet Silverado and GMC Sierra / '21 Chevrolet Tahoe 1
250-9848-65/70/75/80 '22 RAM ProMaster
250-9850-65/70/75/80 '19-'22 Mercedes Sprinter Van
250-9858-65/70/75/80 '07-'21 Nissan Frontier
250-9859-65/70/75/80 '13-'19 Nissan Titan
250-9861-65/70/75/80 '22 Ford Maverick, '19-'22 Ford Ranger and Ford Transit Connect (2.0l and 2.5L Engines Only)
250-9862-65/70/75/80 '18-'21 Mercedes Metris
250-9864-65/70/75/80 '11-'19 Ford Fiesta
250-9865-65/70/75/80 '13-'20 Dodge Grand Caravan
250-9866-65/70/75/80 '20-'22 Ford Transit Full-Size
250-9867-65/70/75/80 '11-'14 Ford F150
250-9868-65/70/75/80 '21-'22 Ford F150

1. Requires customer-supplied 1.9K resistor when using Rostra relay module 250-3766 on vehicles equipped with original equipment cruise control functionality. Click here to download resistor installation instructions.

Product Installation Example

Email Us

Feel free to use the form below to contact us if you have any questions or concerns about adding a speed-limiter to your vehicle, or if you're interested in purchasing one of the kits detailed on this page.

Message:

Sign me up for your newsletter with the latest technical tips and new product releases.

For the best in driving experience, choose an automotive speed limiter from Rostra, the leader in 12-volt Accessories technology.

Please note, speed-limiters for all automotive applications are only sold through authorized distributors. Please contact Rostra to locate a distributor in your area for your speed-limiting needs.

Download a copy of Rostra's 3 Year/36,000 Mile warranty registration card by clicking here.
