Rostra's newest line of cameras provide the aftermarket with vehicle specific kits for the most popular work trucks. Factory style tailgate latch kits feature cameras that are discreetly mounted within the bezel of the tailgate latch handle with the following added benefits:

Tailgate Handle Camera Features

Thread-Together Connectors

Weatherproof thread-together connections ensure that elements like water cannot intrude and degrade the video/power harness

Industry-Compatible Plugs/Wiring

RCA video output and DC power input plugs provide industry-standard connections

Convoluted Tubing Standard

Convoluted tubing protects the main video and power harness from damage

Popular Mirror/Monitor Pairings

250-8240 (4.3" LCD, 2 Video Inputs)

Rostra 250-8208 rearview mirror includes a built-in 4.3-inch LCD screen with two video inputs for front, rear and/or side-view cameras

Click for more information...

250-8274 (7.2" LCD, 4 Video Inputs)

Rostra 250-8274 rearview mirror includes a built-in 7.3-inch LCD screen with three video inputs for front, rear and/or side-view cameras

Click for more information...

250-8821 (OnStar Button, 4.3" LCD, 2 Video Inputs)

Rostra 250-8821 rearview mirror includes a built-in 4.3-inch LCD screen with two video inputs for rear and/or side-view cameras

Click for more information...

Matte Black Tailgate Handle Backup Camera Systems (Ford, Dodge, Toyota, Chevrolet/GMC)

250-8645 (2015-2020 Ford F-150)

Features

Tailgate handle with camera pre-installed
Low-Light capable CMOS III Sensor
0.1 Lux minimum illumination
640 x 480 resolution
NTSC video system
OE-matched parking grid lines
Selectable grid lines (On/Off)

6-32V working voltage
-20^o - +70^oC working temperature
-40^o - +85^oC storage temperature
IP67 waterproof
Includes 30-foot extension harness
3 year/36,000 Mile Warranty

Five-Element Lens
IR filter with scratch protection coating
Anti-fog coating
IR protective coating
Viewing Angle
Diagonal 187^o
Horizontal 146^o
Vertical 88^o

250-8650

2004-2014 Ford F-150 & 2008-2016 Ford F-250/350/450/550

Click image to enlarge...

Tailgate handle with camera pre-installed
Low-Light capable CMOS III Sensor
0.1 Lux minimum illumination
640 x 480 resolution
NTSC video system
OE-matched parking grid lines
Selectable grid lines (On/Off)
6-32V working voltage
-20^o - +70^oC working temperature
-40^o - +85^oC storage temperature

IP67 waterproof
Includes 30-foot extension harness
Five-Element Lens
IR filter with scratch protection coating
Anti-fog coating
IR protective coating
Viewing Angle
Diagonal 187^o
Horizontal 146^o
Vertical 88^o
3 year/36,000 Mile Warranty

Kit Contents

Tailgate handle camera for Ford F150/F250/F350

Click image to enlarge...

250-8651

2007-2013 1500 and 2007-2014 2500/3500 Chevrolet Silverado & GMC Sierra

Click image to enlarge...

Tailgate handle with camera pre-installed
Low-Light capable CMOS III Sensor
0.1 Lux minimum illumination
640 x 480 resolution
NTSC video system
OE-matched parking grid lines
Selectable grid lines (On/Off)
6-32V working voltage
-20^o - +70^oC working temperature
-40^o - +85^oC storage temperature

IP67 waterproof
Includes 30-foot extension harness
Five-Element Lens
IR filter with scratch protection coating
Anti-fog coating
IR protective coating
Viewing Angle
Diagonal 187^o
Horizontal 146^o
Vertical 88^o
3 year/36,000 Mile Warranty

Kit Contents

Tailgate handle camera for Chevrolet Silverado and GMC Sierra

Click image to enlarge...

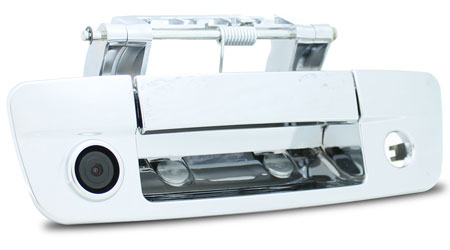

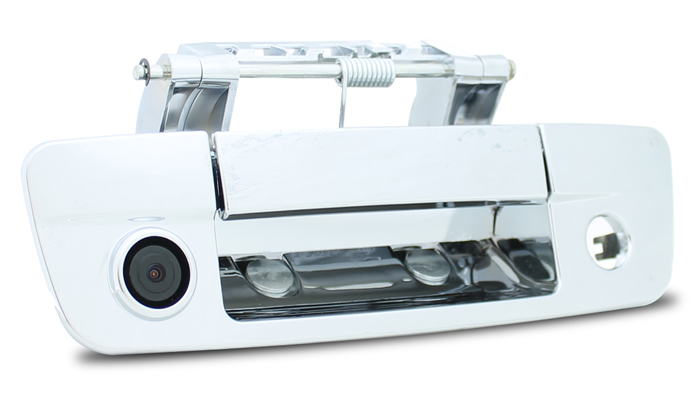

250-8652

2009-2018 1500 Ram Trucks, 2010-2018 2500/3500 Ram Trucks

Click image to enlarge...

Tailgate handle with camera pre-installed
Low-Light capable CMOS III Sensor
0.1 Lux minimum illumination
640 x 480 resolution
NTSC video system
OE-matched parking grid lines
Selectable grid lines (On/Off)
6-32V working voltage
-20^o - +70^oC working temperature
-40^o - +85^oC storage temperature

IP67 waterproof
Includes 30-foot extension harness
Five-Element Lens
IR filter with scratch protection coating
Anti-fog coating
IR protective coating
Viewing Angle
Diagonal 187^o
Horizontal 146^o
Vertical 88^o
3 year/36,000 Mile Warranty

Kit Contents

Tailgate handle camera for Dodge and RAM Trucks 1500/2500/3500

Click image to enlarge...

250-8653

2005-2015 Toyota Tacoma

Click image to enlarge...

Tailgate handle with camera pre-installed
Low-Light capable CMOS III Sensor
0.1 Lux minimum illumination
640 x 480 resolution
NTSC video system
OE-matched parking grid lines
Selectable grid lines (On/Off)
6-32V working voltage
-20^o - +70^oC working temperature
-40^o - +85^oC storage temperature

IP67 waterproof
Includes 30-foot extension harness
Five-Element Lens
IR filter with scratch protection coating
Anti-fog coating
IR protective coating
Viewing Angle
Diagonal 187^o
Horizontal 146^o
Vertical 88^o
3 year/36,000 Mile Warranty

Kit Contents

Tailgate handle camera for 2005-2015 Toyota Tacoma

Click image to enlarge...

250-8655

2014-2018 Chevrolet Silverado & GMC Sierra

Click image to enlarge...

Tailgate handle with camera pre-installed
Low-Light capable CMOS III Sensor
0.1 Lux minimum illumination
640 x 480 resolution
NTSC video system
OE-matched parking grid lines
Selectable grid lines (On/Off)
6-32V working voltage
-20^o - +70^oC working temperature
-40^o - +85^oC storage temperature

IP67 waterproof
Includes 30-foot extension harness
Five-Element Lens
IR filter with scratch protection coating
Anti-fog coating
IR protective coating
Viewing Angle
Diagonal 187^o
Horizontal 146^o
Vertical 88^o
3 year/36,000 Mile Warranty

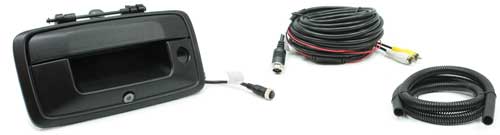

Kit Contents

Tailgate handle camera for 2014-2018 Chevrolet Silverado and GMC Sierra

Click image to enlarge...
