How to Relocate the Tailgate Backup Camera on a Ford F-150

Adding aftermarket equipment to the rear of your Ford F-150, whether it's a swing-out tire carrier, a camper shell, fifth-wheel towing, or a service body that replaces the bed altogether, often times results in the loss of your OE backup camera functionality because the camera mounted in the tailgate handle is either blocked or has been removed completely. Rostra Accessories offers a complete line of interface harnesses and aftermarket cameras for 2010-2022 Ford F-150 that plug directly into the connector on the underside of the truck near the rear bumper which allows you to keep this important safety feature while often using a camera that's superior in functionality to the OE device.

If you have any questions about using a backup camera relocation system with your Ford F-150, or want to share details of the equipment that you're adding to the back of the truck, please click here to email us.

Tailgate Camera Relocation Systems for the 2010-2014 Ford F-150

2010-2014 Ford F-150 Backup Camera Relocation Interface Harness with OE-Style 4-Pin Connector

Click image to enlarge...

Select a camera below...

Rostra 250-8148 camera included with kit number 250-8627-3BL
Rostra 250-8199HD camera included with kit number 250-8627-LPB
Rostra 250-8184HD camera included with kit number 250-8627-BMHQ
Rostra 250-8149 camera included with kit number 250-8627-BMHQ
Rostra 250-8150 camera included with kit number 250-8627-BMHQ
250-8627-3BL
250-8627-LPB
250-8627-BMHQ
250-8627-WIR
250-8627-BIR
Rostra 250-8098 camera included with kit number 250-8627-BMHQ
Rostra 250-8199-TABHD camera included with kit number 250-8627-BMHQ
Rostra 250-8147-HD camera included with kit number 250-8627-BMHQ
250-8627-ULT
250-8627-TAB
250-8627-W

  • Harness Specifications
  • Displays camera on OE screen.
  • 5-meter (14.5-foot) length.
  • Plug-and-play vehicle-side connector.
  • Convoluted tubing protective jacket.
  • Requires no splicing into factory wiring.
  • 4-Pin thread-together camera connector.

Tailgate Camera Relocation Systems for the 2015-2020 Ford F-150 with Automatically-Lowering Tailgate

2015-2020 Ford F-150 with Automatically-Lowering Backup Camera Relocation Interface Harness with OE-Style 4-Pin Connector

Click image to enlarge...

Select a camera below...

Rostra 250-8148 camera included with kit number 250-8633-3BL
Rostra 250-8199HD camera included with kit number 250-8633-LPB
Rostra 250-8184HD camera included with kit number 250-8633-BMHQ
Rostra 250-8149 camera included with kit number 250-8633-BMHQ
Rostra 250-8150 camera included with kit number 250-8633-BMHQ
250-8633-3BL
250-8633-LPB
250-8633-BMHQ
250-8633-WIR
250-8633-BIR
Rostra 250-8098 camera included with kit number 250-8633-BMHQ
Rostra 250-8199-TABHD camera included with kit number 250-8633-BMHQ
Rostra 250-8147-HD camera included with kit number 250-8633-BMHQ
250-8633-ULT
250-8633-TAB
250-8633-W

  • Harness Specifications
  • Displays camera on OE screen.
  • 1-meter (3.3-foot) length.
  • Plug-and-play vehicle-side connector.
  • Convoluted tubing protective jacket.
  • Requires no splicing into factory wiring.
  • 4-Pin thread-together camera connector.

Tailgate Camera Relocation Systems for the 2015-2022* Ford F-150 with Manually-Lowering Tailgate

* Not for use with vehicles equipped with LVDS camera. Click here to view camera relocation products for Ford 360 camera system.

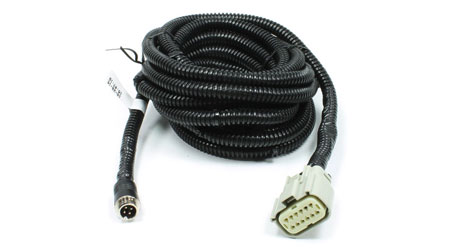

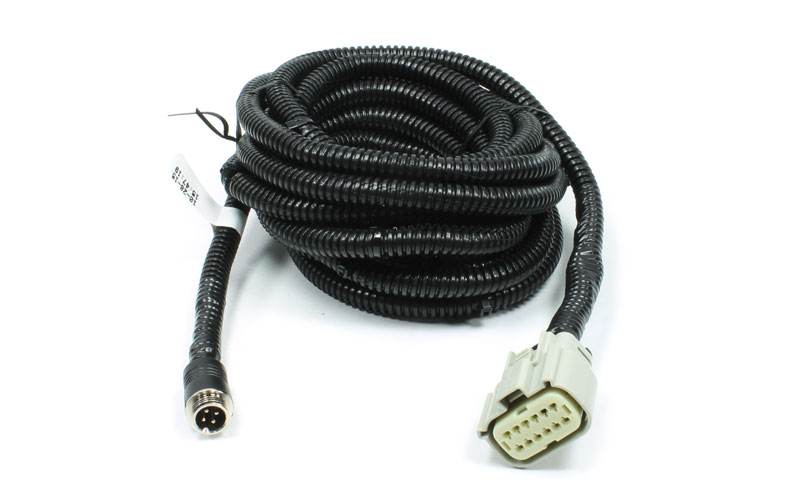

2015-2022* Ford F-150 with Manually-Lowering Tailgate Backup Camera Relocation Interface Harness with OE-Style 4-Pin Connector

Click image to enlarge...

Select a camera below...

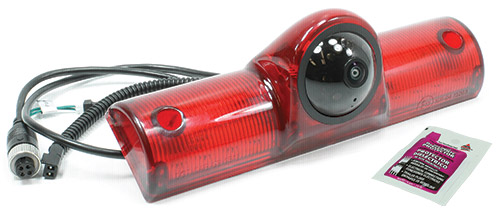

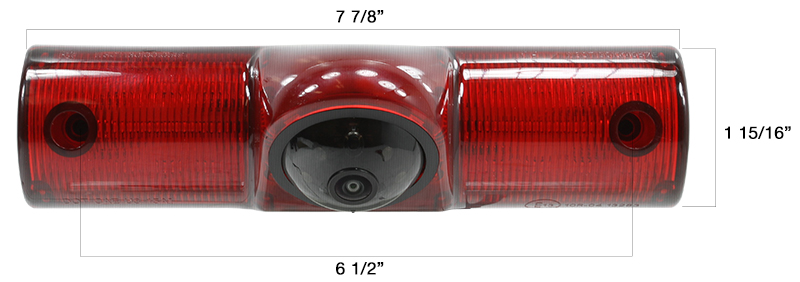

Rostra 250-8148 camera included with kit number 250-8635-3BL
Rostra 250-8199HD camera included with kit number 250-8635-LPB
Rostra 250-8184HD camera included with kit number 250-8635-BMHQ
Rostra 250-8149 camera included with kit number 250-8635-BMHQ
Rostra 250-8150 camera included with kit number 250-8635-BMHQ
250-8635-3BL
250-8635-LPB
250-8635-BMHQ
250-8635-WIR
250-8635-BIR
Rostra 250-8098 camera included with kit number 250-8635-BMHQ
Rostra 250-8199-TABHD camera included with kit number 250-8635-BMHQ
Rostra 250-8147-HD camera included with kit number 250-8635-BMHQ
250-8635-ULT
250-8635-TAB
250-8635-W

  • Harness Specifications
  • Displays camera on OE screen.
  • 1-meter (3.3-foot) length.
  • Plug-and-play vehicle-side connector.
  • Convoluted tubing protective jacket.
  • Requires no splicing into factory wiring.
  • 4-Pin thread-together camera connector.

Email Us

Feel free to use the form below to contact us if you have any questions or concerns about relocating your Ford F-150's backup camera from the tailgate or if you're interested in purchasing one of the kits detailed on this page.

Message:

Sign me up for your newsletter with the latest technical tips and new product releases.
