250-8222 and 250-8223 Heavy-Duty Multi-Input LCD Monitors

LCD monitor part numbers 250-8222 and 250-8223 feature a 7” LCD screen with multi-camera split view capability, four video inputs (can be individually triggered), the ability to surface mount the screen using the included pedestal stand or as a rearview mirror replacement through the use of the 5” stem mount (included with monitor 250-8223). Our wide variety of paired universal and vehicle-specific camera solutions for the most popular vehicle applications on the road make this monitor a best-in-class solution for your fleet.

Product Specifications

Note: While many of the features of the 250-8222 and 250-8223 monitors are accessible using the buttons on the face of the monitor, the included IR remote control is necessary for modifying picture settings, speaker volume, mirror image switching, system language, trigger-off delay settings, and more.

QuadView LCD Monitors

250-8222 7” Quad Input Monitor with Surface-Mount Pedestal

250-8223 7” Quad Input Monitor with Windshield Lug Stem Mount

Camera Viewing Options

Rostra’s 250-8222 and 250-8223 multi-camera monitors provide drivers with a variety of ways to display the video from their cameras on-screen including one at a time or with multiple cameras in a split view. Below are the twelve different options which can be chosen on-the-go using the MODE button on the monitor or its remote control.

Quad View (Option 1)

Quad View (Option 1)

Quad View (Option 2)

Quad View (Option 2)

Split View (Front/Rear)

Split View (Front/Rear)

Split View (Left/Right)

Split View (Left/Right)

Single View (Front)

Single View (Front)

Single View (Rear)

Single View (Rear)

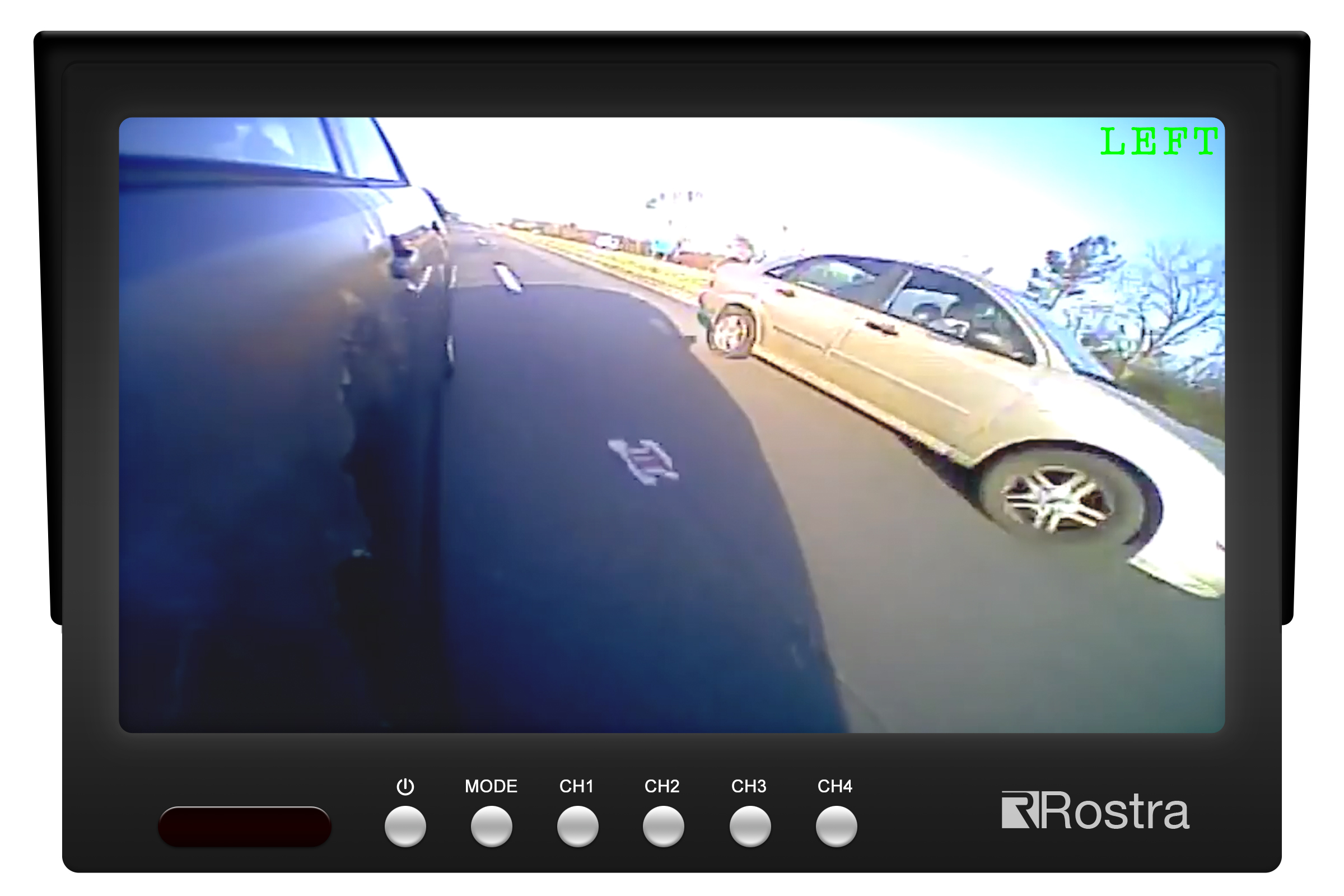

Single View (Left)

Single View (Left)

Single View (Right)

Single View (Right)

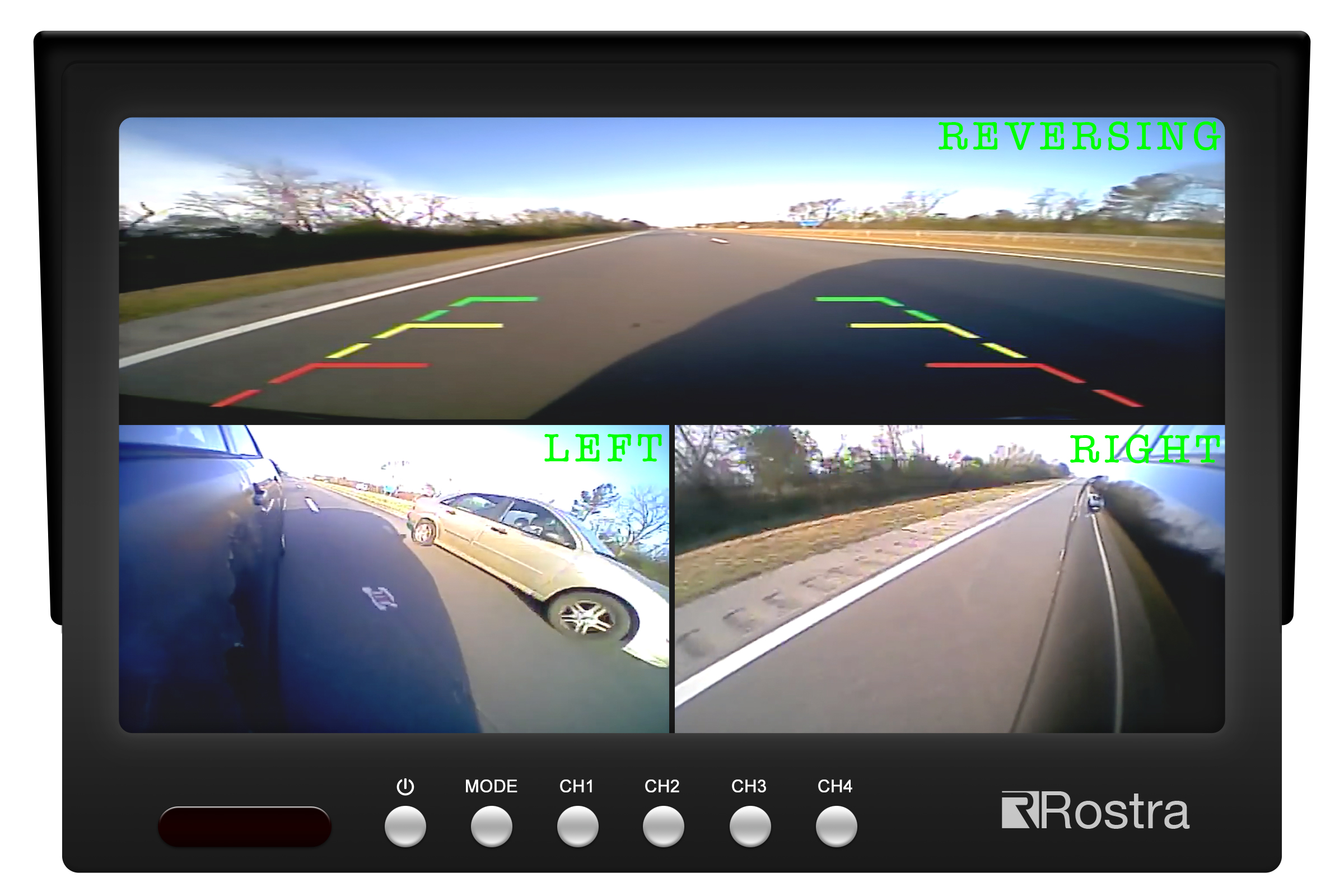

Triple View (Front/Rear/Left)

Triple View (Front/Rear/Left)

Triple View (Front/Rear/Right)

Triple View (Front/Rear/Right)

Triple View (Front/Left/Right)

Triple View (Front/Left/Right)

Triple View (Rear/Left/Right)

Triple View (Rear/Left/Right)

Product Line Updates

With the availability of the new 250-8222 and 250-8223 monitors, Rostra will be discontinuing our previous models 250-8212 and 250-8214 and the associated monitor/camera combinations. The substitutions for these kit are as follows:

Discontinued Kit New Kit New Kit Description
250-8212 250-8222 HD 7" Quad-View Capable Monitor with Pedestal Surface Mount, Remote Control, Power/Video Extension Harness, and 4-Pin to RCA Adapter
250-8212-3BL 250-8222-3BL 250-8222 Monitor with 250-8148 Universal High-Mount Third Brake Lamp Camera - 20-Meter Extension Harness
250-8212-B 250-8222-B 250-8222 Monitor with 250-8183 Universal Flush-Mount Camera - 20-Meter Extension Harness
250-8212-BIR 250-8222-BIR 250-8222 Monitor with 250-8150 Black Universal Hinge-Mount IR Camera (Microphone for Audio) - 20-Meter Extension Harness
250-8212-IR 250-8222-IR 250-8222 Monitor with 250-8149 White Universal Hinge-Mount IR Camera (Microphone for Audio) - 20-Meter Extension Harness
250-8212-LPB 250-8222-LPB 250-8222 Monitor with 250-8199 Universal License Plate-Mount Camera (Microphone for Audio) - 20-Meter Extension Harness
250-8212-NV200 250-8222-NV200 250-8222 Monitor with 250-8155 2013-2019 Nissan NV200/Chevrolet City Express High-Mount Third Brake Lamp Adapter Camera - 20-Meter Extension Harness
250-8212-SHUT 250-8222-SHUT 250-8222 Monitor with 250-8097 Stainless Steel Universal Hinge-Mount IR Camera with Motorized Shutter (Microphone for Audio) - 20-Meter Extension Harness
250-8212-SPRINT 250-8222-SPRINT 250-8222 Monitor with 250-8162 2007-2018 Dodge/Mercedes Sprinter High-Mount Third Brake Lamp Camera - 20-Meter Extension Harness
250-8212-TTFS 250-8222-TTFS 250-8222 Monitor with 250-8154 2014+ Ford Transit Full-Size High-Mount Third Brake Lamp Camera - 20-Meter Extension Harness
250-8212-W 250-8222-W 250-8222 Monitor with 250-8147 Universal Surface/Stud-Mount Camera - 20-Meter Extension Harness
250-8214 250-8223 HD 7" Quad-View Capable Monitor with Windshield Stem Mount and Pedestal Mount, Remote Control, Power/Video Extension Harness, and 4-Pin to RCA Adapter
250-8214-3BL 250-8223-3BL 250-8223 Monitor with 250-8148 Universal High-Mount Third Brake Lamp Camera - 20-Meter Extension Harness
250-8214-B 250-8223-B 250-8223 Monitor with 250-8183 Universal Flush-Mount Camera - 20-Meter Extension Harness
250-8214-BIR 250-8223-BIR 250-8223 Monitor with 250-8150 Black Universal Hinge-Mount IR Camera (Microphone for Audio) - 20-Meter Extension Harness
250-8214-IR 250-8223-IR 250-8223 Monitor with 250-8149 White Universal Hinge-Mount IR Camera (Microphone for Audio) - 20-Meter Extension Harness
N/A 250-8223-LPB 250-8223 Monitor with 250-8199 Universal License Plate-Mount Camera (Microphone for Audio) - 20-Meter Extension Harness
N/A 250-8223-NV200 250-8223 Monitor with 250-8155 2013-2019 Nissan NV200/Chevrolet City Express High-Mount Third Brake Lamp Adapter Camera - 20-Meter Extension Harness
250-8214-SHUT 250-8223-SHUT 250-8223 Monitor with 250-8097 Stainless Steel Universal Hinge-Mount IR Camera with Motorized Shutter (Microphone for Audio) - 20-Meter Extension Harness
250-8214-SPRINT 250-8223-SPRINT 250-8223 Monitor with 250-8162 2007-2018 Dodge/Mercedes Sprinter High-Mount Third Brake Lamp Camera - 20-Meter Extension Harness
N/A 250-8223-TRSW 250-8223 Monitor with Single Input Trailer Camera Adapter, 250-8150 Black Universal Hinge-Mount IR Camera (Microphone for Audio) - 20-Meter Extension Harness
250-8214-TTFS 250-8223-TTFS 250-8223 Monitor with 250-8154 2014+ Ford Transit Full-Size High-Mount Third Brake Lamp Camera - 20-Meter Extension Harness
250-8214-W 250-8223-W 250-8223 Monitor with 250-8147 Universal Surface/Stud-Mount Camera - 20-Meter Extension Harness

For the best in driving experience, choose heavy-duty vehicle cameras from Rostra, the leader in 12-volt Accessories technology.

Please note, programmable cameras for heavy and light-duty trucks and fleet applications are only sold through authorized distributors. Please contact Rostra to locate a distributor in your area for your backup or blindspot camera needs.

Download a copy of Rostra's 3 Year/36,000 Mile warranty registration card by clicking here.
